Thursday, December 12, 2013

mt004 - Creating a ball bounce animation

In this tutorial, you will create a ball bounce animation using various animation techniques.

Maya 2014Textbook: http://www.cadcim.com/ProductDetails.aspx?ISBN=978-1-936646-52-4
Download eBook @ our eStore: http://www.cadcim.com/ProductDetails.aspx?ISBN=978-1-936646-52-4

For more information visit: www.cadcim.com
Maya Blog: http://mayaexperts.blogspot.com
Follow us @cadcimtech
Like our page: www.facebook.com/cadcim
eMail us at sales@cadcim.com

Thursday, August 8, 2013

mt003 - How to create a realistic Light Lamp in Maya?

In this tutorial, we will walk you through the process of creating believable Lamplight using Maya. To give lamp realistic effect we just can't put a single point light in the middle but we have to use multiple lights with different settings to produce the result we are looking for.


As you can see in image below we have used one directional Light for fill light and five points light for flames. Point lights provide illumination to the flames while one directional light fills the dark area of the scene.


Shaders on the walls, floor and other props are general shaders. Flame shader needed some special attention. Create a custom shader network for the flame shader. Place two 2d file texture nodes in Hypershade one for flame texture and second for flame transparency. Attach both the 2d file texture node to candle_flame.psd located in the source images folder. Rename them as flame_texture and flame_transparency. For texture node change Link to Layer set to Flame_Texture and Transparency File node change it to Alpha and Alpha to use to Alpha1.



Now drop a lambert node in Hypershade. Shift+Middle drag the second 2d file texture node on to the lambert node. Connection editor will pop up. Connect file node’s out color to the Color and also to the incandescence node of the lambert shader.Now drop a lambert node in Hypershade. Shift+Middle drag the second 2d file texture node on to the lambert node. Connection editor will pop up. Connect file node’s out color to the Color and also to incandescence node of the lambert shader. Similarly connect first 2d file texture out color to transparency of the lambert shader.


Candle flame texture setup is complete. Now its time to refine the flame. create a simple plane as illustrated below and assign the flame texture we just created to it.


Now setup the lights as described below.

Point Lights...

Point Lights Shadows...

Directional Fill Light...

If you need glow on the candle flames go to Lambert shader and in Special Effects attribute give some glow to the shader. This was a quick walk through for creating believable candle flames in Maya.

Wednesday, May 29, 2013

Autodesk Maya 2014 book by CADCIM Technologies

Welcome to the world of Autodesk Maya 2014. Autodesk Maya 2014 is a powerful, integrated 3D modeling, animation, visual effects, and rendering software developed by Autodesk Inc. This integrated node based 3D software finds its application in developing films, games, and design projects. A wide range of 3D visual effects, computer graphics, and character animation tools make it an ideal platform for 3D artists. The intuitive user interface and workflow tools of Maya 2014 have made the job of design visualization specialists a lot easier.

Autodesk Maya 2014 book covers all features of Autodesk Maya 2014 in a simple, lucid, and comprehensive manner. It aims at harnessing the power of Autodesk Maya 2014 for 3D and visual effects artists and designers. This textbook will help you transform your imagination into reality with ease. Also, it will unleash your creativity, thus helping you create realistic 3D models, animation, and visual effects. It caters to the needs of both the novice and advanced users of Maya 2014 and is ideally suited for learning at your convenience and at your pace.
Table of Contents
Chapter 1
Exploring Maya Interface

Chapter 2
Polygon Modeling

Chapter 3
NURBS Curves and Surfaces

Chapter 4
NURBS Modeling

Chapter 5
UV Mapping

Chapter 6
Shading and Texturing

Chapter 7
Lighting

Chapter 8
Animation - I

Chapter 9
Animation - II

Chapter 10
Paint Effects

Chapter 11
 Rendering

Chapter 12
Particle System

Chapter 13
Introduction to nParticles

Chapter 14
Fluids

Chapter 15
nHair

Chapter 16
Maya Fur

Chapter 17
Bullet Physics

Pre-Order Now

Tuesday, May 7, 2013

mt0002 - Creating an arm chair in Maya 2014

In this tutorial, you will create an arm chair using the polygon modeling techniques using Maya 2014, as shown in Figure t2-1.
Figure t2-1  The model of an arm chair
Step -1
Start a new scene in Maya 2014.

Step -2
Choose Create > Polygon Primitives > Cylinder > Option Box from the menubar; the Tool Settings (Polygon Cylinder Tool) window is displayed in the viewport, enter 102 and 1 in the Axis divisions, Height divisions and Cap divisions edit boxes, respectively, as shown in Figure t2-2.

Figure t2-2  The Tool Settings (Polygon
Cylinder Tool) window
Step -3
Click on the viewport; pCylinder1 is displayed in it, as shown in Figure t2-3.

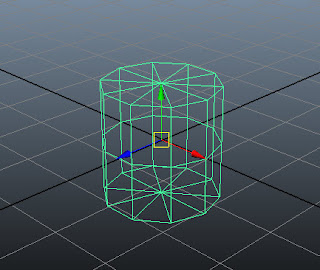

Figure t2-3  The cylinder displayed in the viewport
Step - 4
Choose Shading > Smooth Shade All from the Panel menu or press 5; pCylinder1 is displayed in the shaded mode.

Step - 5
Rename pCylinder1 as base in the Channel Box / Layer Editor.

Step - 6
Hover the cursor on the persp viewport and then press SPACEBAR; the four viewports are displayed. Next, maximize the front viewport.

Step - 7
Select base. Next, choose Scale Tool from the tool box or press R.

Step - 8
Uniformly scale down the base, as shown in Figure t2-4.
Figure t2-4 Base scaled down
Step - 9
Hover the cursor on the front viewport and then press SPACEBAR; the four viewports are displayed. Maximize the persp viewport.

Step - 10
In the persp viewport, press and hold the right mouse button on base; a marking menu is displayed. Next, choose Face from the marking menu.

Step - 11
Now, select the top faces of base using the SHIFT key, as shown in Figure t2-5. Next, choose Edit Mesh > Extrude from the menubar.
Figure t2-5 Top faces of the base selected

Step - 12
Invoke  Scale Tool and scale down the selected faces uniformly, as shown in Figure t2-6.
Figure t2-6 The top faces of the base
scaled down uniformly

Step - 13
Press G key to invoke the Extrude command again. Next, invoke the Scale Tool by pressing R key and then scale down the selected faces uniformly, as shown in Figure t2-7.

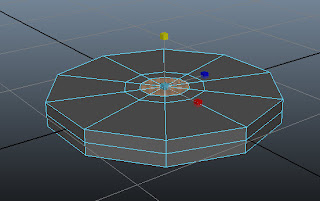

Figure t2-7 The selected faces of the base
scaled down uniformly
Step - 14
Choose Edit Mesh > Insert Edge Loop Tool from the menubar. Next, click on top region of the base; an edge is inserted, refer Figure t2-8. Press W to deactivate the Insert Edge Loop Tool.
Figure t2-8 An edge inserted at the
top of the base
Step - 15
Press and hold the right mouse button; a marking menu is displayed. Next, choose Face from the marking menu. Select the faces of base using SHIFT, as shown in Figure t2-9.
Figure t2-9 Faces of the base selected
Step - 16

Next, move the seleced faces upward, as shown in Figure t2-10.
Figure t2-10 Selected faces moved upward
Step - 17
Deselect the outer selected faces using SHIFT and then move upward, as shown in Figure t2-11.

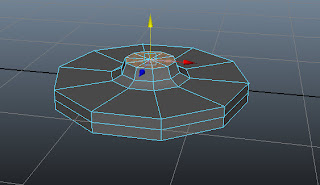

Figure t2-11 Outer faces moved upward
Step - 18
Hover the cursor on the persp viewport. Press SPACEBAR; the four viewports are displayed. Maximize the front viewport.

Step - 19
Press 5 to switch to the shaded mode. Choose Edit Mesh > Extrude from the menubar. Next, invoke Move Tool and then move the extruded faces upward, as shown in Figure t2-12.
Figure t2-12 Extruded faces moved upward
Step -20
Press and hold the right mouse button on base; a marking menu is displayed. Next, choose Object Mode and then select the base.

Step - 21
Make sure base is selected in the front viewport. Choose Mesh > Smooth > Option Box from the menubar; the Smooth Options dialog box is displayed. In this dialog box, make sure the Division levels slider is set to 2. Now, choose the Smooth button; the geometry of base is smoothened, as shown in Figure t2-13.
Figure t2-13 The smooth base displayed
Step - 22
Press and hold the right mouse button on the base; a marking menu is displayed. Next, choose vertex from the marking menu and then select the vertices, as shown in Figure t2-14.
Figure t2-14 Vertices selected
Step - 23
Next, invoke the Scale Tool by pressing R key and scale the selected faces uniformly, as shown in Figure t2-15.
Figure t2-15 Selected vertices scaled uniformly
Step - 24
Now, scale the selected vertices downward, as shown in Figure t2-16. Switch to the object mode.
Figure t2-16 Selected vertices scaled downward


Step - 25
Hover the cursor on the front  viewport. Press SPACEBAR; the four viewports are displayed. Maximize the persp viewport. Next, choose Create > Polygon Primitives > Cube > Option Box from the menubar; the Tool Settings (Polygon Cube Tool) window is displayed in the viewport, enter 5and 3 in the Width divisions, Height divisions and Depth divisions edit boxes, respectively, as shown in Figure t2-17. Next, enter 1,0.5 and 0.5 in the Width, Height and Depth edit boxes, respectively, refer to Figure t2-17.
Figure t2-17  The Tool Settings (Polygon
Cylinder Tool) window
Step - 26
Click on the persp viewport; pCube1 is displayed in the viewport, as shown in Figure t2-18.

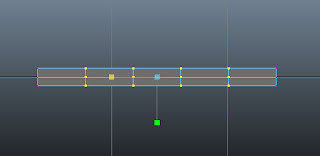

Figure t2-18  The cube displayed in the viewport
Step - 27
Rename pCube1 as seat in the Channel Box / Layer Editor.

Step - 28
Maximize the front viewport. Scale the seat along the X and Y axis, as shown in Figure t2-19.
Figure t2-19 The scaled seat
Step - 29
Press and hold the right mouse button on it; a marking menu is displayed. Choose vertex from the marking menu. Now, select the vertices, as shown in Figure t2-20.
Figure t2-20 Vertices to be selected
Step - 30
Choose the Move Tool. Now, adjust the selected vertices, as shown in Figure t2-21.

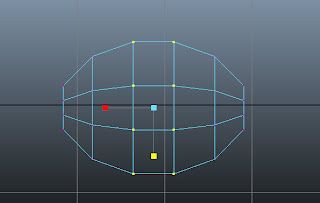

Figure t2-21 Selected vertices adjusted
Step - 31
Similarly, adjust other vertices to create the basic shape of seat, as shown in Figure t2-22
Figure t2-22 Other vertices adjusted
Step - 32
Maximize the top viewport and then select the vertices as shown in Figure t2-23a. Choose Scale Tool and then scale the selected vertices along the Z-axis, as shown in Figure t2-23b.
Figure t2-23a The vertices to be selected

Figure t2-23b The selected vertices scaled
Step - 33
Similarly, scale other vertices, as shown in Figure t2-24.
Figure t2-24 Other selected vertices scaled down
Step - 34
Select the vertices, as shown in Figure t2-25a. Next, scale the selected vertices along the X-axis, as shown in Figure t2-25b.

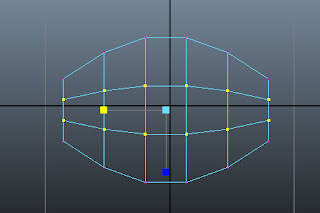

Figure t2-25a Vertices to be selected

Figure t2-25b New selected vertices scaled left
Step - 35
Maximize front viewport. Choose the Move Tool. Now, select the vertices, as shown in Figure t2-26a and then adjust the selected vertices, as shown in Figure t2-26b.

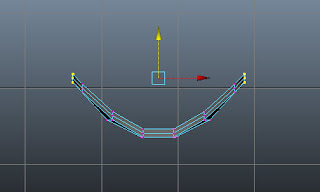

Figure t2-26a Vertices to be selected
Figure t2-26b Selected vertices adjusted
Step - 36
Press and hold the right mouse button on it; a marking menu is displayed. Next, choose Object Mode from the marking menu and then select seat.

Step - 37
Choose Mesh > Smooth from the menubar; the mesh of seat is smoothened.
Figure t2-27 shows the seat after smoothing.
Figure t2-27 The smooth seat displayed
Step - 38
Next, press CTRL + D; a duplicate copy of the seat is created with the name seat1 in the viewport.

Step - 39
Choose Rotate Tool from the Tool Box or press E. Now, enter 90 in the Rotate X edit box in the Channel Box/Layer Editor; seat1 is rotated 90 degrees about the X-axis.

Step - 40
Next, choose the Move Tool and then align seat1 in all viewports, as shown in Figure t2-28.
Figure t2-28 Copied object aligned in all viewports
Step - 41
Maximize the persp viewport. Press and hold the SHIFT key and select seat. Next, press CTRL + D; a duplicate copy of the selected objects are created in the viewport, as shown in Figure t2-29.
Figure t2-29 Duplicate copy created
Step - 42
Next, invoke the Scale Tool by pressing R key and scale down uniformly, as shown in Figure t2-30.
Figure t2-30 Copied object scaled down uniformly


Step - 43
Invoke Move Tool by pressing W key. Next, maximise the front viewport. Press and hold the SHIFT key and select seat and seat1. Now, align the selected parts, as shown in figure t2-31.
Figure t2-31 Selected objects adjusted
Step - 44
Maximise the persp viewport. Choose Render the current frame button from the status line to view the output, refer to Figure t2-32.
Figure t2-32 The rendered model of the arm chair

Tuesday, April 30, 2013

Saturday, March 2, 2013

mt0001-How to directly create PSD file from the Hypershade window in Maya.

In this tutorial, you will create PSD file using the Hypershade window in Maya. This will help you to speed up your workflow of texturing the 3D models in Maya.

1. First, you need to have a model.

2. Open the file in Maya and select the model and add a material to it.

3. Open the Hypershade window. In the Edit menu, choose the Create PSD Network option; the Create PSD Network Options window is displayed, refer to Figure 1.
Figure 1
4. Set the size of the PSD file. Now, select the required maps from the Attributes list box in the Attributes Selection area. Choose the (>) button, refer to Figure 2.
Figure 2
5. Note that as you choose the (>) button, the selected map is moved to the Selected Attributes area, refer to Figure 3.
Figure 3

6. Choose the Create button, you will notice that  PSD node is created in Work Area of the  Hypershade window and the file is opened in the Photoshop application automatically.

7. Edit your texture file in Photoshop and save it in PSD format. When you save the PSD file, it is automatically updated and displayed in Maya. If not, open the Hypershade window. Next, choose the Update PSD Networks option from the Edit menu; it updates the PSD file.

Also, you can edit the PSD file. To do so, choose the Edit PSD Network option from the Edit menu in the Hypershade window.
